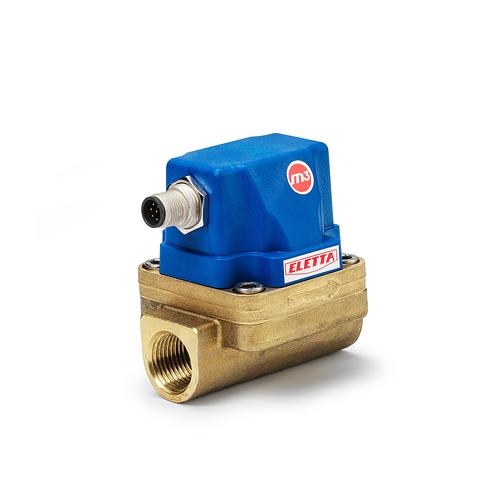

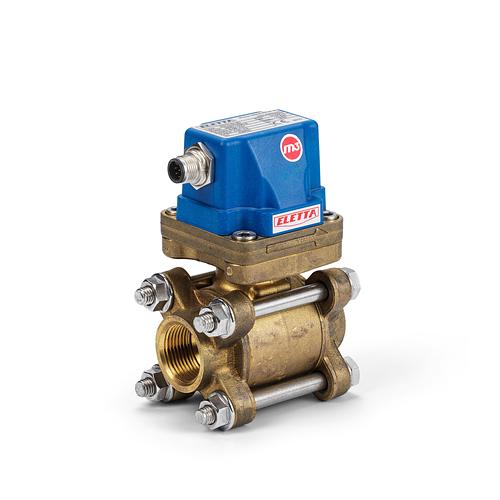

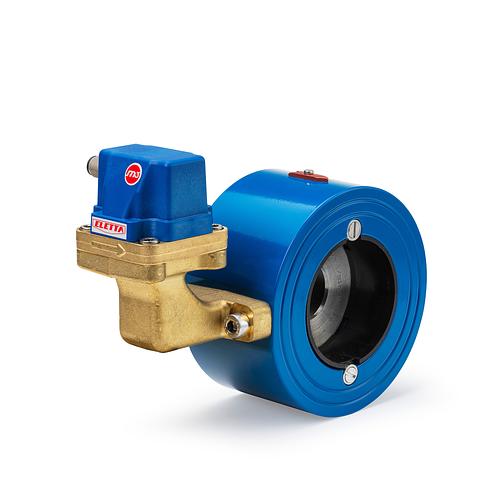

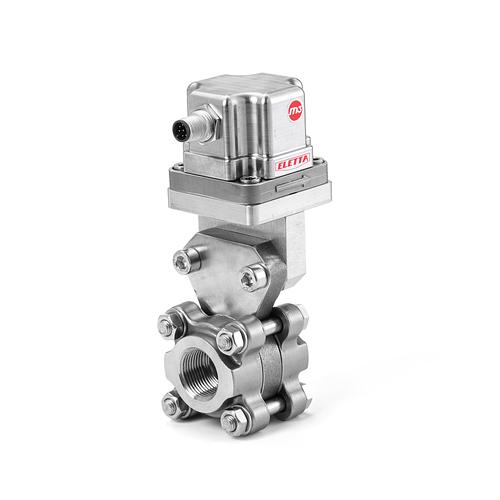

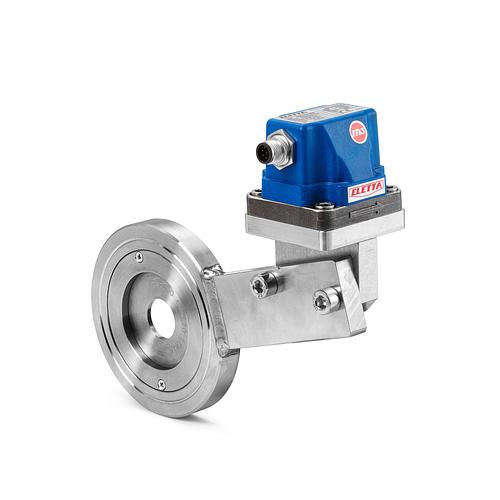

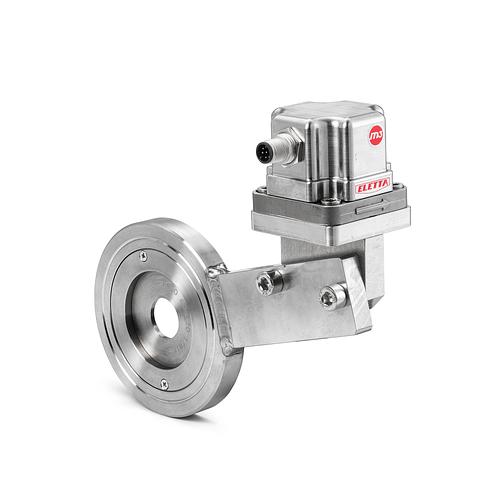

The Flowmeter in M-series M3 has two independent piezoresistive absolute pressure sensors that give you a compact flowmeter that can be used for three different functions: Gas flow measurement, Liquid flow measurement and Differential pressure measurement. M3 can measure most occur-ring gases and compensates for changes in pressure and temperature (mass flow measurement). Programmable with Eletta’s flowcenter. 4-20 mA and Modbus output.
The M3M differential pressure flow transmitter is certified for marine applications
according to DNV rules for classification – Ships, offshore units, and high-speed and light
craft. It has received type approval from DNV for installation on vessels classed by DNV.

Pipe section:

brass, powder coated steel, stainless steel (other material on request)

Housing:

plastic, stainless steel - Marine certified

Measuring range:

1:10 turndown

IP class:

IP67

Pressure classes:

10, 25, 50 bar

Temperature spec:

dependent on configuration. Contact Eletta

Micro switch:

Two piezoresistive absolute pressure sensors

Pipe sizes:

DN6 - DN500

Optional:

loop-powered OLED 128*32 pixels display

Other:

NOTE; Flanged pipes type FA are manufactured according to DIN PN16 / ANSI 150 lbs, applies to all pressure classes.

Documents

Languages

Product Manual M-series

Manual M-series Modbus

Product Presentations

Company Presentation

Product Overview

Product Leaflets M-Series

Certificate - EC Low voltage

Certificate - PED Cat1

Certificate - PED Cat2

Certificate - Quality Policy

Certificate - REACH SVHC Compliance

Certificate - RoHS Comliance

Certificate - Declaration of Conformity D_M-series

Application - Liquified Petroleum Gas

Application - Nitrogen measurement

Application - Chemical Flow-measurement

Case Study - Partikelacceleratorer

3D model for M-Series with flanged pipe section in brass - DN15

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN20

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN25

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN32

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN50

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN65

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN80

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN100

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN125

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN150

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN200

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN250

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN300

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN350

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in brass - DN400

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN15

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN20

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN25

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN32

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN40

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN50

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN65

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN80

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN100

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN125

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN150

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN200

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN250

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN300

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN350

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with flanged pipe section in stainless steel - DN400

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with threaded pipe section in brass - DN15

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with threaded pipe section in brass - DN20

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with threaded pipe section in brass - DN25

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

3D model for M-Series with threaded pipe section in brass - DN40

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Manual M-series FlowCenter

Manual M-series Software

Installations - K-104_K-114

M-Series Software and drivers

Windows Application

Product Leaflet Multiblock

Segment Brochure Marin
