PR1

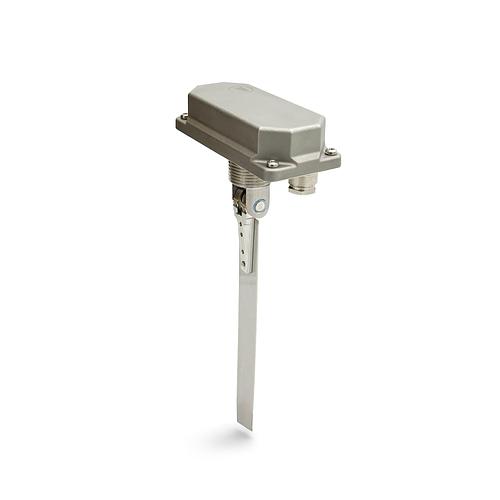

Paddle Switch PR1 is using the liquid flow to activate the spring supported paddle and the micro-switch to give an alarm if the flow stops or starts. The installation is simple as you can cut the paddle to the desired length on site according to the actual pipe size. The paddle aligns fully with the flow and creates a very small pressure drop. The function works only in one flow direction.

Switch rating:

250 VAC 16 A

Pipe sizes:

DN50 – 250

Process connection:

25 mm thread (1¨ BSP or NPT) (through pipe wall)

IP class:

IP 65

Paddel Length:

250 mm - can be cut to the desired length

Micro switch:

mechanical SPDT

Pipe section:

brass, stainless steel

Pressure classes:

PN 25 bar

Temperature spec:

dependent on configuration. Contact Eletta

Product Manual PR1

Product Presentations

Company Presentation

Product Overview

Product Leaflet PR1

Certificate - Low voltage EC

Certificate - Quality Policy

Certificate - REACH SVHC Compliance

Certificate - RoHS Comliance

Certificate - Declaration of Conformity V_S_SP-G_SP-GA_TIVG_PR1-series

3D model for PR1

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.
