V-Series V2-V25

V-Series V2-V25

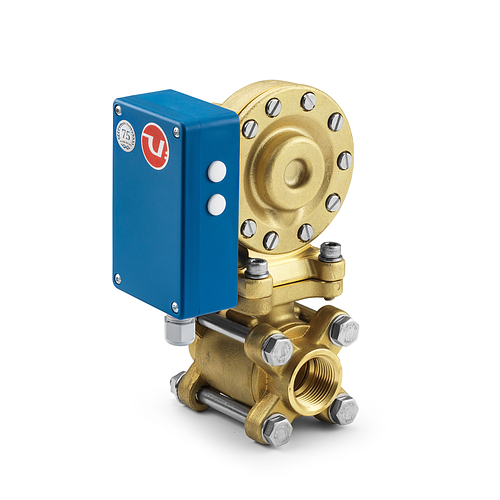

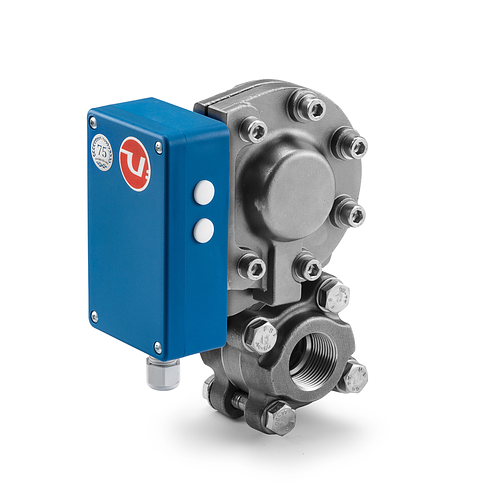

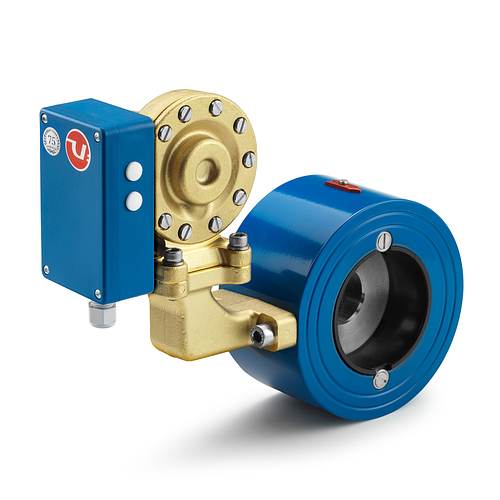

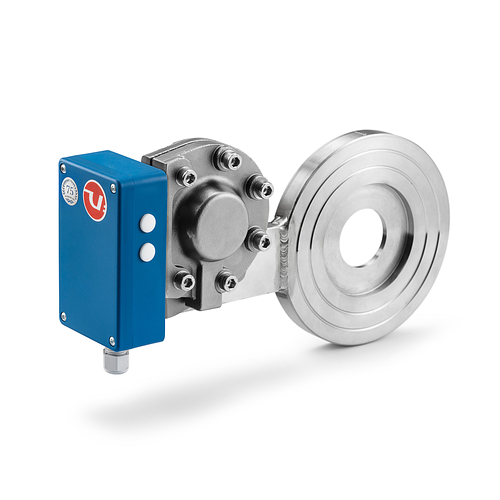

The Flow Monitor in V-series V2-V25 is a very robust and reliable flow monitor for harsh and dusty industrial environment. The compact design, appr. 60 % smaller that V1 and V15 series and allows installation in places with very limited space. The Monitor is insensitive to surrounding magnetic fields and it combines the long standing proven mechanical function with outstanding reliability.

Micro switch:

two adjustable SPDT micro switches

Switch rating:

AC Voltage: 4 A @ 250 VAC & Rating , DC Voltage: 5 A resistive, 2,5 A inductive @ 28 Vdc

Pipe section:

brass, powder-coated steel, stainless steel (other material on request)

Pipe sizes:

DN15 - DN550

Housing:

plastic

Measuring range:

1:2 or 1:5

IP class:

IP43

Temperature spec:

dependent on configuration. Contact Eletta

Documents

Languages

Product Manual V2-V25

Measuring Ranges D-V-S-R -series

Product Presentations

Company Presentation

Product Overview

Product Leaflet V2-V25

Certificate - Low voltage EC

Certificate - PED Cat1

Certificate - PED Cat2

Certificate - Quality Policy

Certificate - REACH SVHC Compliance

Certificate - RoHS Comliance

Certificate - Declaration of Conformity V_S_SP-G_SP-GA_TIVG_PR1-series
