Séries M

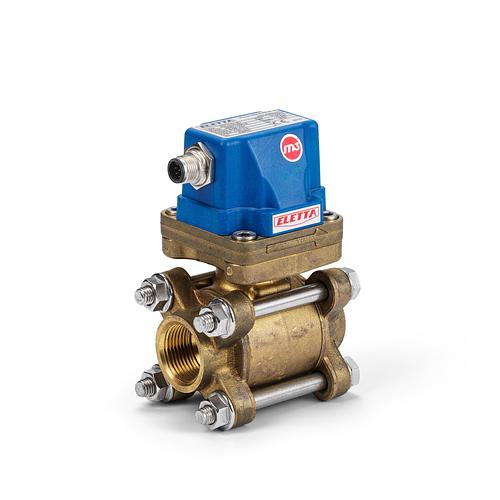

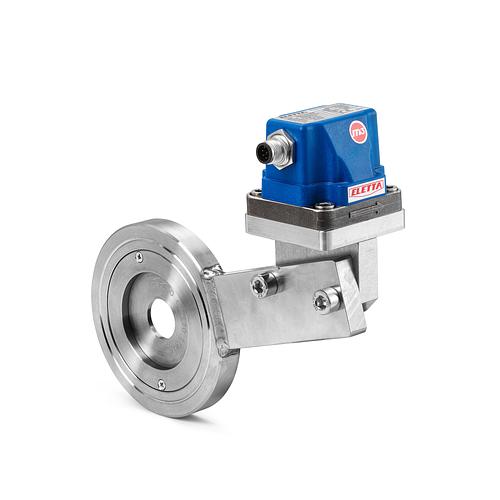

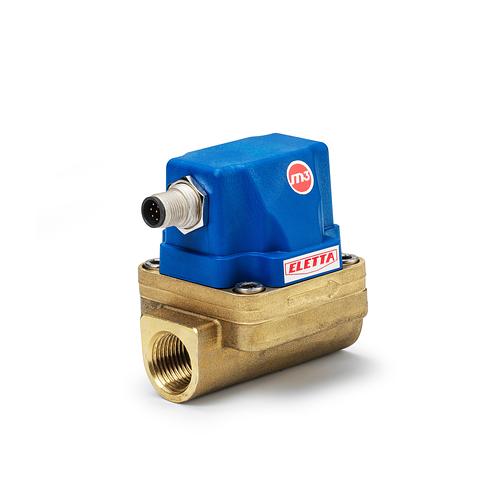

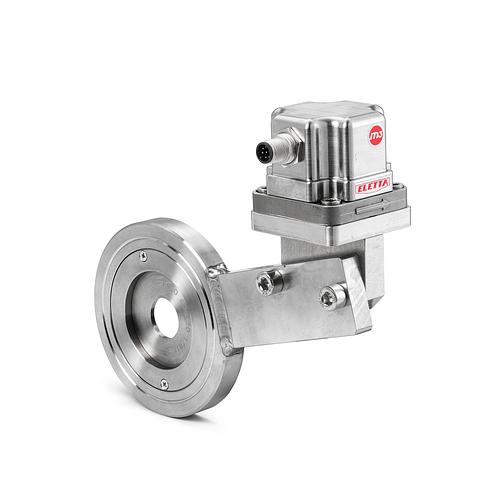

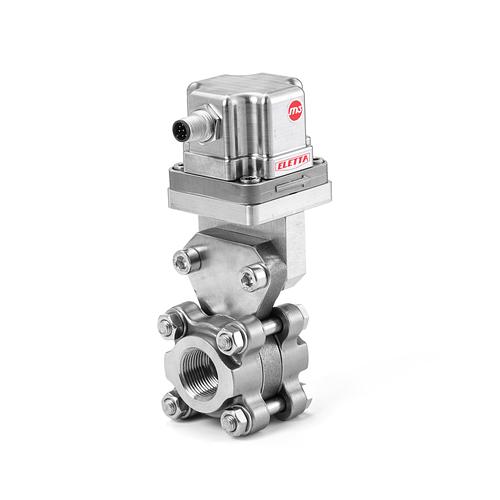

Le débitmètre de la série M (M3) est équipé de deux capteurs de pression absolue piézorésistifs indépendants. Ce débitmètre compact peut être utilisé pour trois fonctions différentes : mesure du débit de gaz, mesure du débit de liquide et mesure de la pression différentielle. Le M3 peut mesurer la plupart des gaz présents et compenser les variations de pression et de température (mesure du débit massique). Programmable avec le logiciel Flowcenter d'Eletta. Sortie 4-20 mA, 2 fils ou Modbus RS485.

Section de canalisation:

Laiton, Acier thermolaqué, Acier inoxydable (autres matériaux sur demande)

Boîtier:

Plastique, Acier inoxydable

Etendue de mesure:

1:10

Classe de protection:

IP67

Pression:

10, 25 ou 50 Bar

Température:

Selon la configuration. Contactez Eletta

Microswitch:

Deux capteurs de pression absolue piézorésistifs

Raccordement:

DN15 - DN550

Options:

Ecran OLED 128*32 pixels alimenté par boucle

Autres:

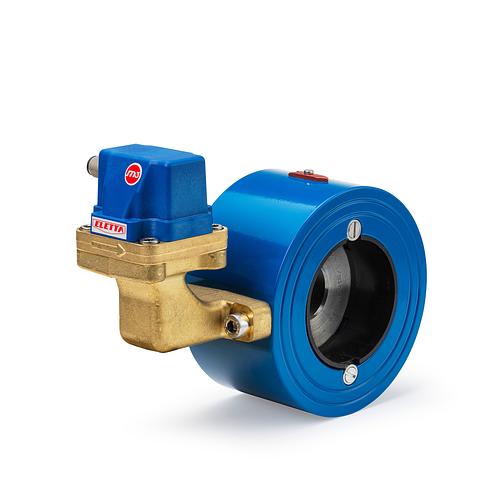

REMARQUE : Les sections de canalisation de type FA sont fabriqués selon la norme DIN PN16 ou ANSI 150 lbs, autres classes de pression sur étude.

Manuel Séries M

Pdf en anglais
 Pdf en allemand
 Pdf en français

Brochure générale produits

Pdf en anglais
 Pdf en suédois

Brochure générale Eletta

Pdf en anglais
 Pdf en suédois

Gamme de produits

Pdf en anglais
 Pdf en allemand
 Pdf en français
 Pdf en suédois

Brochure Séries M

Pdf en anglais
 Pdf en allemand
 Pdf en français
 Pdf en suédois

Certificat - Basse tension et conformité CE

Pdf en anglais

Certificat - PED Cat1

Pdf en anglais

Certificat - PED Cat2

Pdf en anglais

Certificat - Politique Qualité

Pdf en anglais
 Pdf en suédois

Certificat - Conformité REACH SVHC

Pdf en anglais

Certificat - Conformité RoHS

Pdf en anglais

Certificat - Déclaration de conformité Séries D & M

Pdf en anglais

Application - Gaz de pétrole liquéfié

Pdf en anglais
 Pdf en français

Application - Mesure d'Azote

Pdf en anglais
 Pdf en français

Application - Mesure de débit chimique

Pdf en anglais
 Pdf en allemand
 Pdf en français

Application - Accélérateur de particules

Pdf en anglais
 Pdf en allemand
 Pdf en français
 Pdf en suédois

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN15

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN20

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN25

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN32

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN50

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN65

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN80

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN100

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN125

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN150

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN200

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN250

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN300

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN350

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en laiton – DN400

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN15

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN20

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN25

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN32

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN40

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN50

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN65

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN80

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN100

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN125

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN150

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN200

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN250

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN300

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN350

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation entre brides en acier inoxydable – DN400

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation taraudée en laiton – DN15

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation taraudée en laiton – DN20

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation taraudée en laiton – DN25

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série M avec section de canalisation taraudée en laiton – DN40

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.
