Séries S

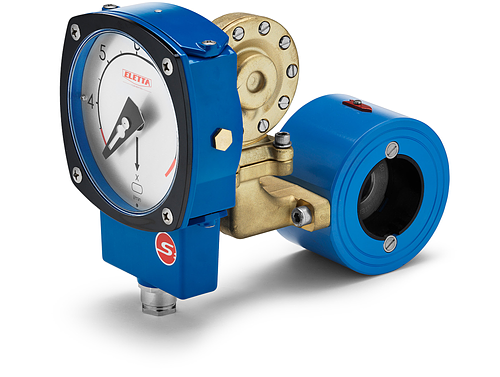

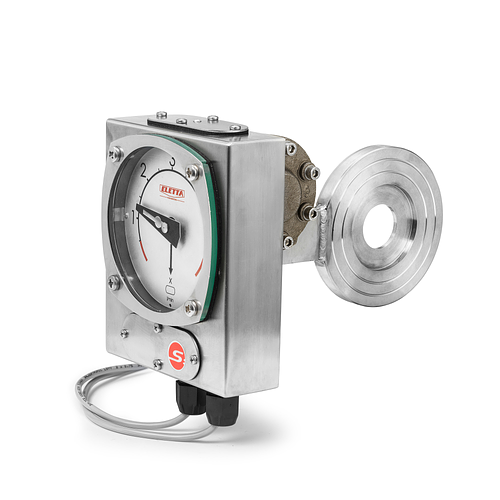

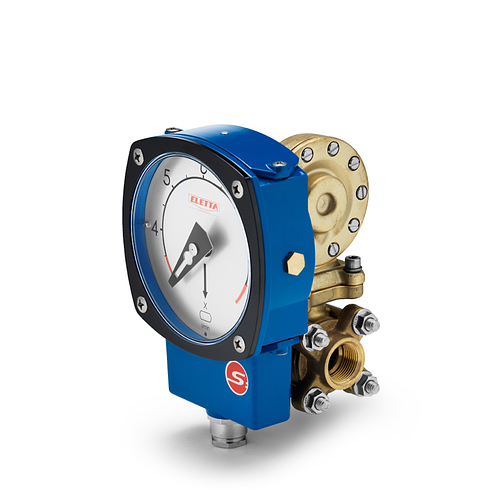

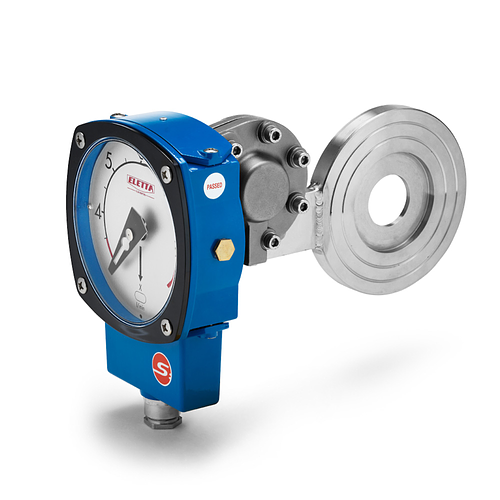

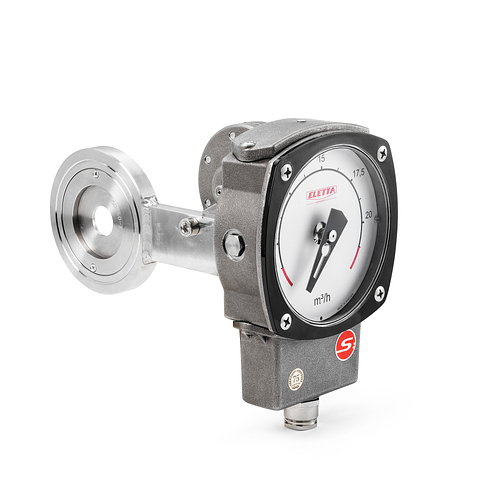

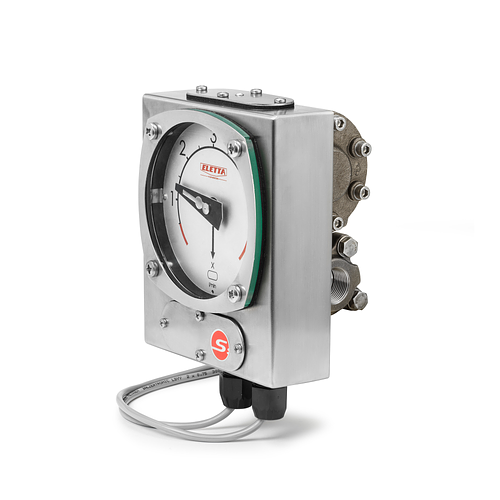

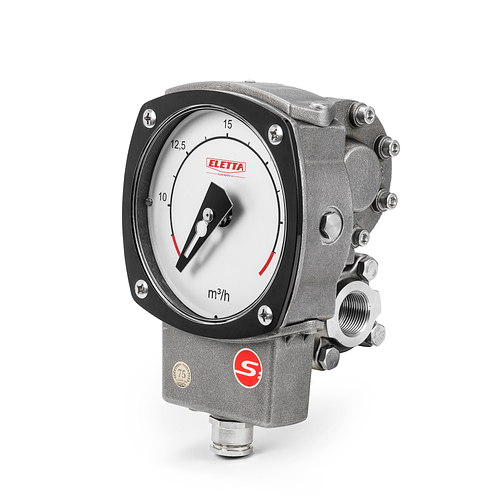

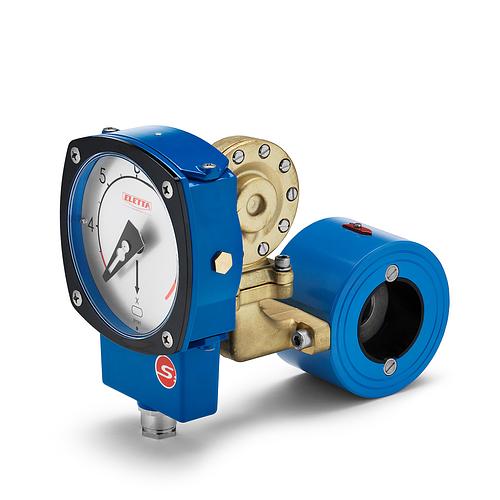

Les débitmètres de la série S (S2 et S25) sont dotés d'un grand cadran personnalisé de 120 mm, facile à lire et linéaire par rapport au débit. Ce cadran est parfaitement visible, même dans un environnement industriel difficile et poussiéreux. Ils sont équipés de deux microswitchs réglables, indépendants l'un de l'autre. Ils sont réglables sur l'étendue de mesure et peuvent être réglés pour des alarmes de débit haut/haut, haut/bas ou bas/bas, par exemple pour protéger les équipements des systèmes de réfrigération ou de lubrification. Ils sont insensibles aux champs magnétiques.

Section de canalisation:

Laiton, Acier thermolaqué, Acier inoxydable (autres matériaux sur demande)

Raccordement:

DN15 - DN550

Boîtier:

Aluminium, Acier inoxydable

Etendue de mesure:

1:2 ou 1:5

Classe de protection:

IP43 en standard, IP65 en option

Température:

Selon la configuration. Contactez Eletta

Options:

Certification Atex, Haute Température, Montage Séparé, Montage Parallèle avec la série M ...et plus encore !

Valeurs nominales:

maxi 15 A @ 480 Vac & 2 A @ 30 Vdc

Microswitch:

Deux microswitchs SPDT réglables, répétabilité <2%. Les S02 ou S05 n'ont pas de contacts et affichent uniquement le débit.

Manuel Séries S & V - Atex

Pdf en anglais

Echelles de mesure Séries D, V, S & R

Pdf en anglais
 Pdf en allemand
 Pdf en français
 Pdf en suédois

Brochure générale produits

Pdf en anglais
 Pdf en suédois

Brochure générale Eletta

Pdf en anglais
 Pdf en suédois

Brochure Nucléaire

Pdf en anglais

Gamme de produits

Pdf en anglais
 Pdf en allemand
 Pdf en français
 Pdf en suédois

Brochure Séries S

Pdf en anglais
 Pdf en allemand
 Pdf en français
 Pdf en suédois

Certificat - Basse tension et conformité CE

Pdf en anglais

Certificat - PED Cat1

Pdf en anglais

Certificat - PED Cat2

Pdf en anglais

Certificat - Politique Qualité

Pdf en anglais
 Pdf en suédois

Certificat - Conformité REACH SVHC

Pdf en anglais

Certificat - Conformité RoHS

Pdf en anglais

Certificat - Déclaration de conformité Séries V, S, SP-G, SP-GA, TIVG & PR1

Pdf en anglais

Certificat - Déclaration de conformité S & V - ATEX

Pdf en anglais

Application - Vérins hydrauliques et groupes électrogènes - Hoven

Pdf en anglais

Application papeterie - Holmen Paper

Pdf en anglais

Application induction thermique - SAET

Pdf en anglais

Application - EFD Induction

Pdf en anglais
 Pdf en suédois

Application - Accélérateur de particules

Pdf en anglais
 Pdf en allemand
 Pdf en français
 Pdf en suédois

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN15

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN20

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN25

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN32

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN40

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN50

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN65

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN80

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN100

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN125

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN150

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN200

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN250

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN300

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN350

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en laiton – DN400

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN15

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN20

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN25

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN32

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN40

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN50

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN65

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN80

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN100

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN125

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN150

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN200

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN250

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN300

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN350

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN400

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation entre brides en acier inoxydable – DN500

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation taraudée en laiton – DN15

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation taraudée en laiton – DN20

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation taraudée en laiton – DN25

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation taraudée en laiton – DN40

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation taraudée en acier inoxydable – DN15

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation taraudée en acier inoxydable – DN20

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.

Modèle 3D pour série S avec section de canalisation taraudée en acier inoxydable – DN25

Plans 3D en Pdf
3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.
