S-Serie

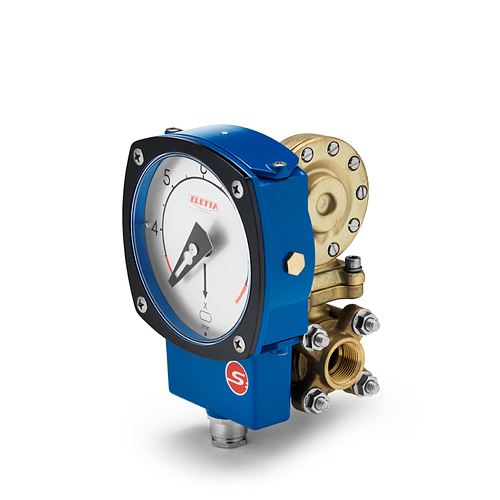

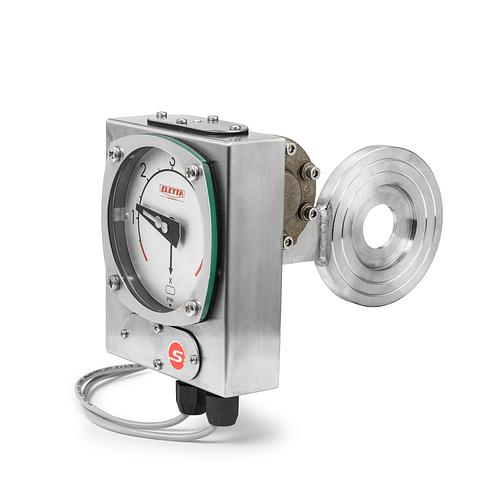

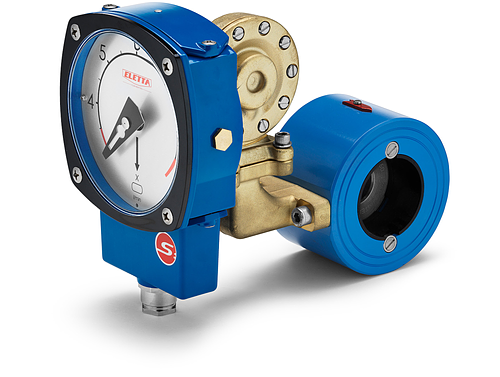

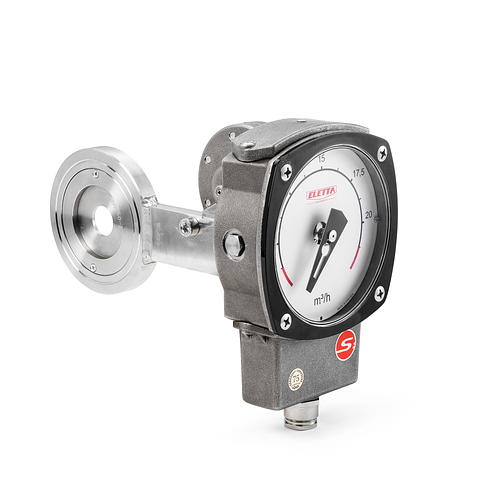

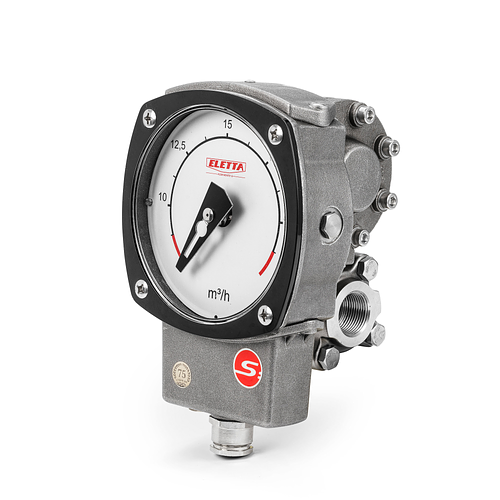

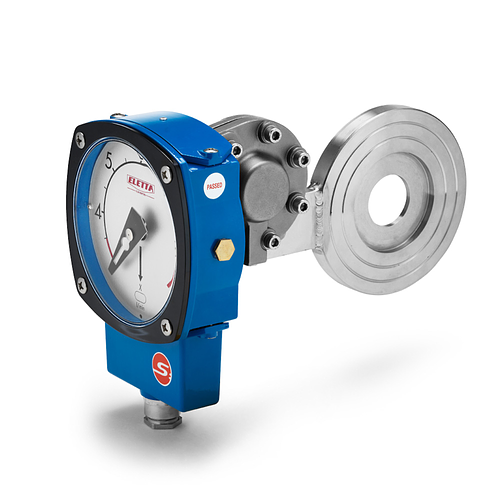

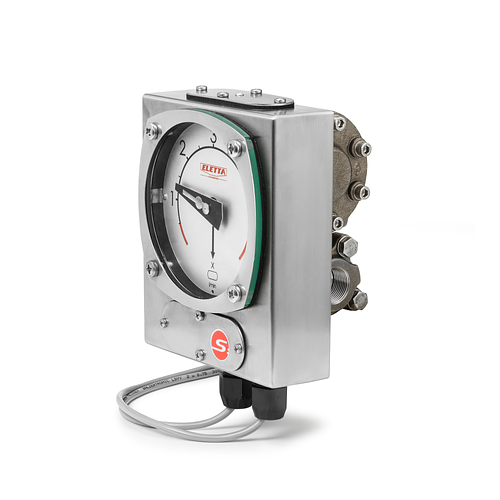

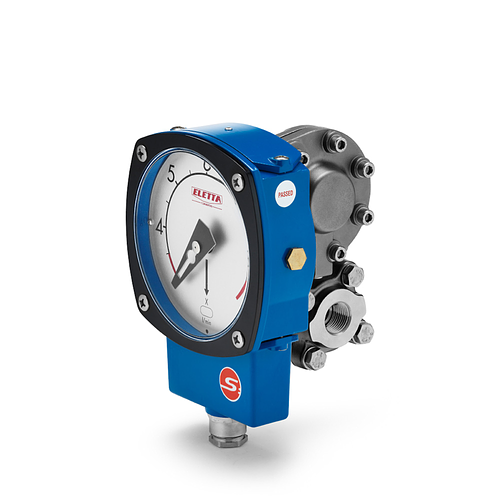

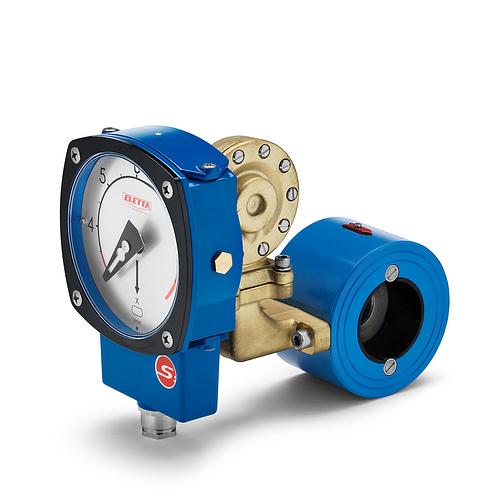

Der Strömungswächter der S-Serie - S2 & S25 hat eine große, leicht ablesbare, kundenspezifische Skala von 120 mm, die sich linear zum Durchfluss verhält. Die Skala ist auch in einer rauen und staubigen Industrieumgebung gut sichtbar. Die S2-Serie hat zwei einstellbare Mikroschalter, die unabhängig voneinander sind. Sie sind innerhalb des Messbereichs einstellbar und können für Hoch/Hoch- oder Hoch/Niedrig- oder Niedrig/Niedrig-Durchflussalarme eingestellt werden, zum Beispiel zum Schutz von Anlagen in Kühl- oder Schmierölsystemen. Ist unempfindlich gegenüber Magnetfeldern.

Rohrstück:

Messing, pulverbeschichteter Stahl, rostfreier Stahl (andere Materialien auf Anfrage)

Nennweiten:

DN 15 - DN 550

Gehäuse:

Aluminium, Edelstahl

Messbereich:

1:2 oder 1:5

IP Schutzklasse:

IP43 Standard, IP65 optional

Temperaturbereich:

Abhängig von der Konfiguration. Kontaktieren sie Eletta

Optionen:

Atex-zertifiziert, Hochtemperatur, separate Montage, parallele Montage mit M-Serie und mehr!

Schaltleistung:

Max. 15 A bei 480 VAC und 2 A bei 30 VDC

Mikroschalter:

Zwei einstellbare SPDT-Mikroschalter, Wiederholbarkeit <2% S02, S05 haben keinen Mikroschalter, sondern zeigen nur die Durchflussmenge an.
