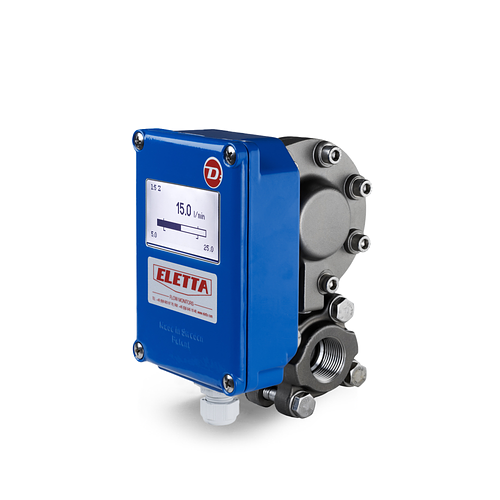

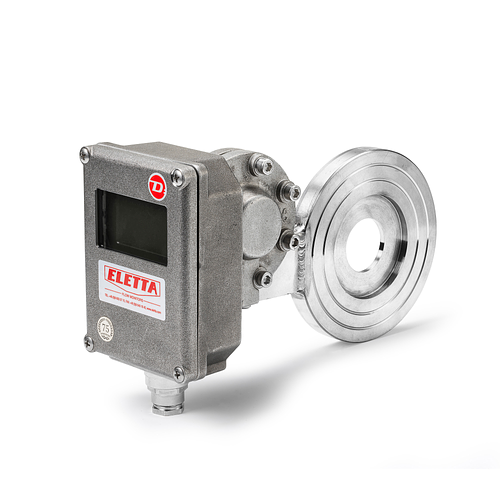

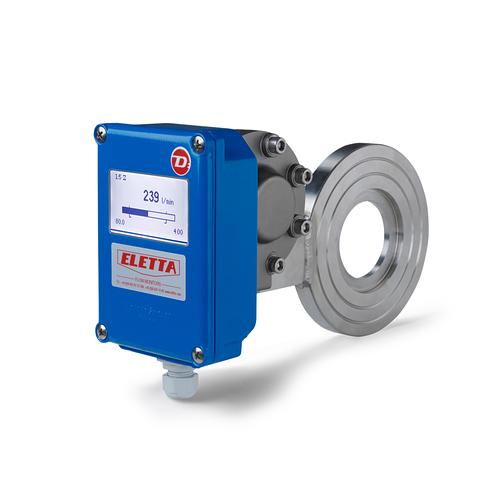

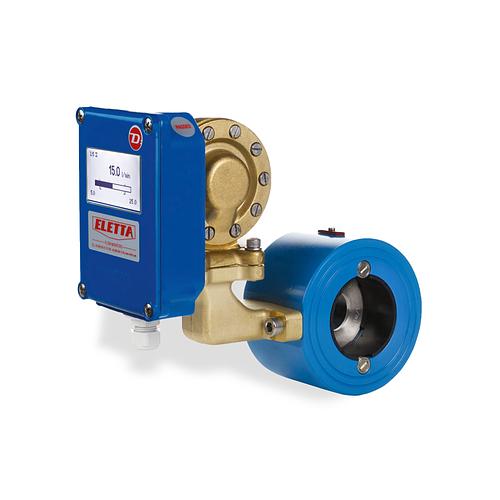

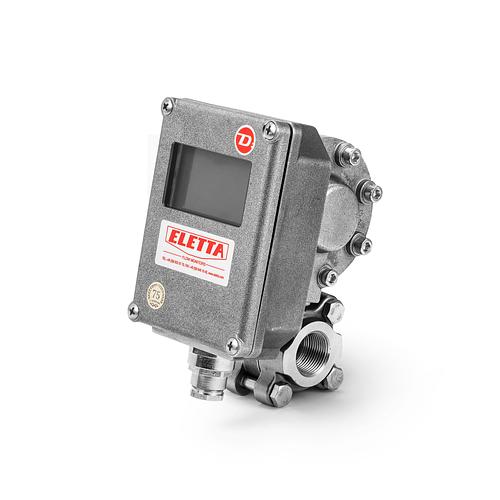

The Flow Monitor in D-series has a backlit digital display that can be rotated electronically. It has a 4-20 mA, HART, pulse or frequency output, the accuracy is ± 2% F.S. (full scale) and it is not affected by static pressure. It can be installed both vertically and horizontally and offers zero-settable volume summation of the flow within the measuring range. You can simulate a flow before the meter is in operation.

Relays:

two adjustable alarm points

Relays rating:

50VAC/DC max , 1 mA, 5 VDC min, 30 W max

Pipe section:

brass, powder coated steel, stainless steel (other material on request)

Housing:

aluminum, stainless steel

Measuring range:

1:2 or 1:5 turndown

IP class:

IP65

Temperature spec:

dependent on configuration. Contact Eletta

Pipe sizes:

DN15 - DN550
