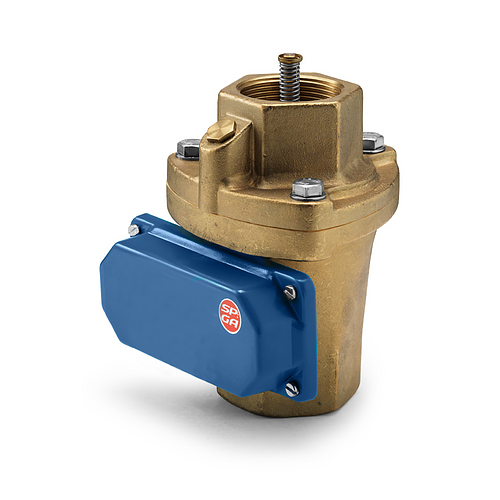

SP-GA

Flow Switch SP-GA is designed to give an initial alarm at a very low flow and still be capable of allowing a high full liquid flow passing through when pumps or valves are activated by the micro switch. The function is based on fluid flow activation only and therefore it is not affected by changes in static pressure. You have the possibility to chose a set point from 3 l/min up to 70 l/min. The set point is calibrated from factory and can be adjusted in field.

Switch rating:

max 10 A @ 250 VAC

Pipe sizes:

DN25 - DN40

Min-max swich point:

3 l/min – 70 l/min

IP class:

IP43

Pressure classes:

PN25

Micro switch:

mechanical SPDT

Pipe section:

brass

Housing:

aluminum

Flow range:

0-300 l/min

Temperature spec:

dependent on configuration. Contact Eletta

Product Manual SP-GA

Product Presentations

Company Presentation

Product Overview

Product Leaflet SP-GA

Certificate - Low voltage EC

Certificate - Quality Policy

Certificate - REACH SVHC Compliance

Certificate - RoHS Comliance

Certificate - Declaration of Conformity V_S_SP-G_SP-GA_TIVG_PR1-series

Reality Report - Krusman Emergency Showers

3D model for SP-GA

3d model of the product in STEP format. Downloads in the background, you will need a CAD program to view it.
