TIVG-Series

The Flow Monitor TIVG is a protective device which controls that the given flow of the liquid in a pipe is at a correct rate and controls any deviations with pre-set microswitches.

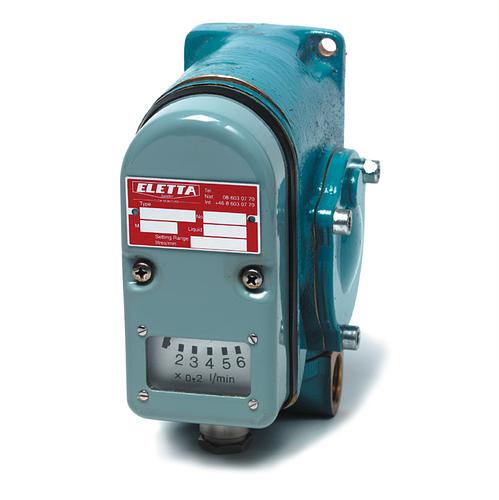

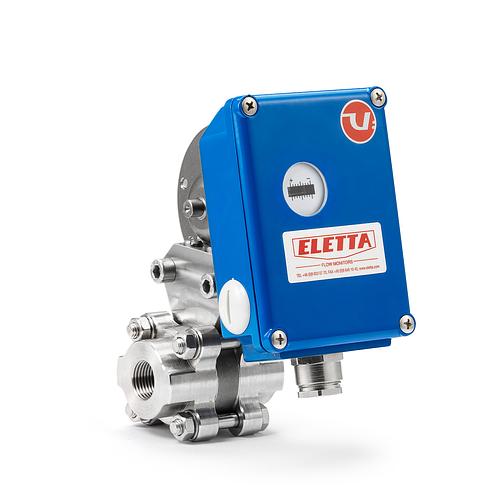

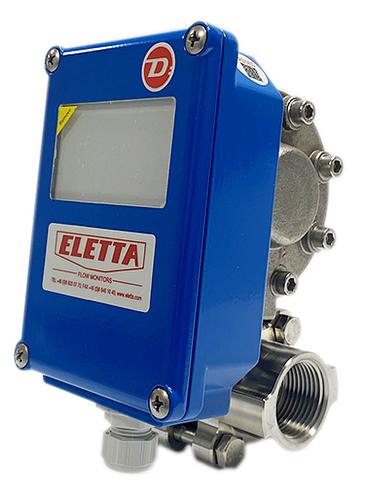

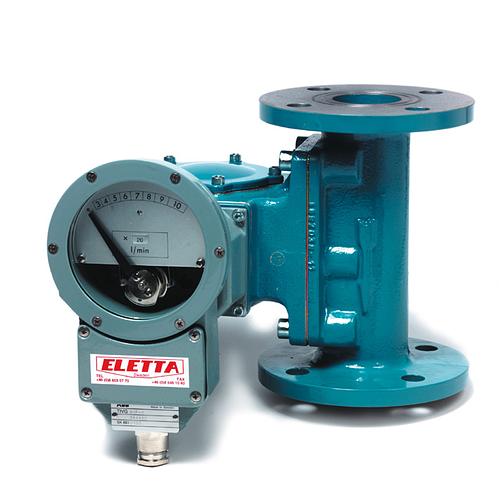

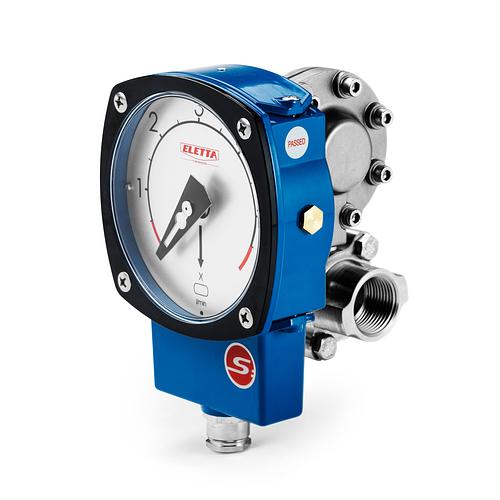

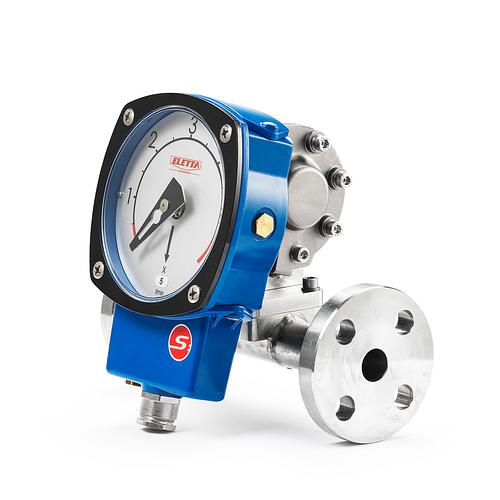

TIVG-S , TIVG-V, TIVG-D is replacing the old TIVG-F and -R Flow Monitor with updated materials and functions. The upgrade gives a higher quality monitor allowing higher flow rates and wider flow turndown.

The monitor is insensitive to surrounding magnetic fields and it combines the long-standing proven mechanical function with outstanding reliability known for Eletta.

Pipe section::

brass, powder coated steel, stainless steel (other material on request)

Pipe sizes::

DN15 – 400 DIN flange

Housing::

aluminum, stainless steel

Measuring range::

1:5

IP class::

IP65 (NEMA4)

Temperature spec::

depending on configuration. Contact Eletta

Micro switch::

Missing

Product Manual TIVG-S & V

Product Manual TIVG-F

Product Manual TIVG-R

Certificate - Low voltage EC

Certificate - Quality Policy

Certificate - REACH SVHC Compliance

Certificate - RoHS Comliance

Certificate - Declaration of Conformity V_S_SP-G_SP-GA_TIVG_PR1-series
