R-Serie

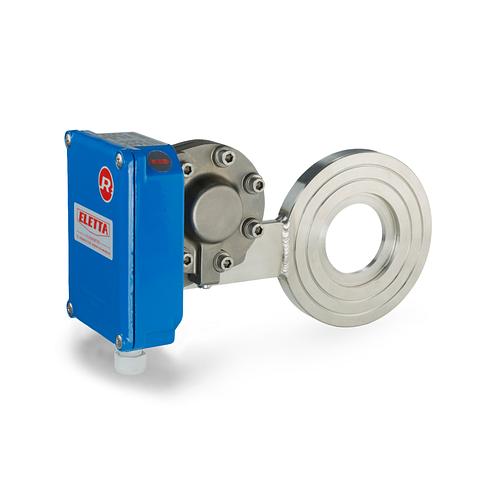

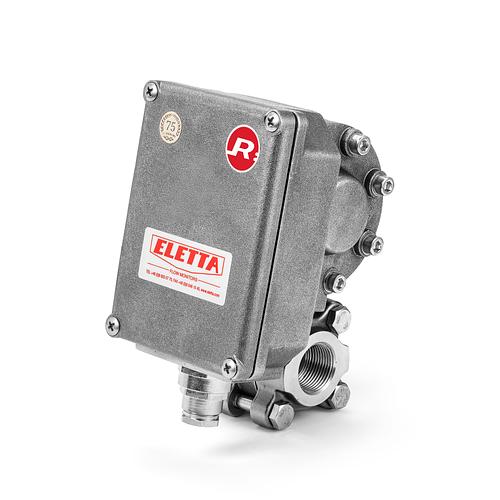

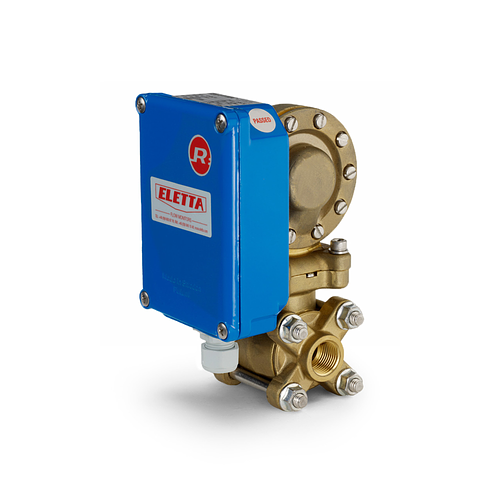

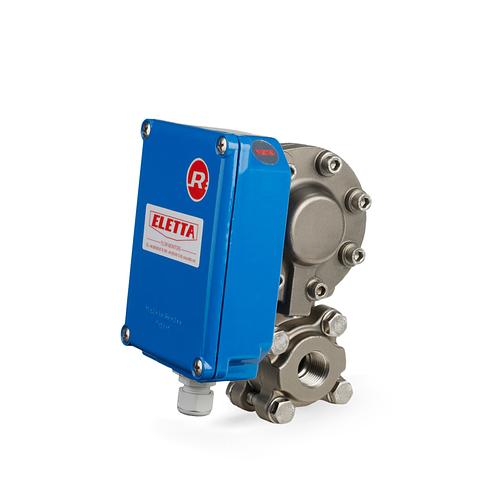

Der Durchflusstransmitter der R-Serie ist ein Durchflusstransmitter mit 3 verschiedenen Varianten, RH für HART, RS für separate Elektronik für Bereiche mit hoher magnetischer Interferenz, wie z.B. Kernsynchrotronen, und RC für das Gleiche wie RS, aber zusätzlich mit keramischen Anschlüssen und Potentiometer für nukleare Strahlung, die zur magnetischen Interferenz in der Installationsumgebung hinzukommt.

Rohrstück:

Messing, Stahl pulverbeschichtet, Edelstahl (andere Materialien auf Anfrage)

Nennweiten:

DN 15 - DN 550

Gehäuse:

Aluminium, Edelstahl

Messbereich:

1:2 oder 1:5 Messspanne

IP Schutzklasse:

IP65

Temperaturbereich:

Abhängig von der Konfiguration. Kontaktieren sie Eletta

Messbereiche D-V-S-R Serie

Produktpräsentationen

Firmenpräsentation

Segmentbroschüre Kernkraft

Produktübersicht

Produktbroschüre R-Serie

Bedienungsanleitung R-Serie

Zertifikat - Niederspannungsrichtlinie

Zertifikat PED Cat1

Zertifikat PED Cat2

Zertifikat - Qualitätspolitik

Zertifikat - REACH SVHC-Konformität

Zertifikat - RoHS-Konformität

Erfahrungsbericht - AvestaPolarit
