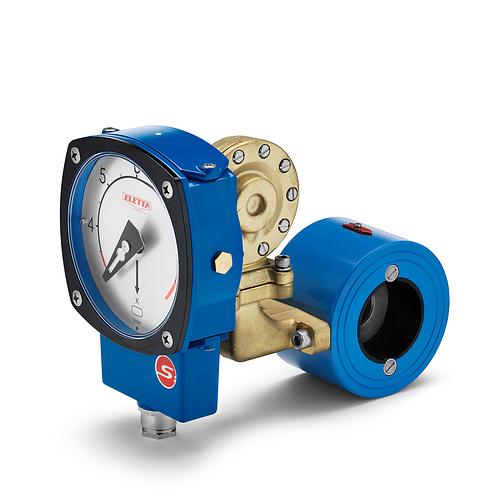

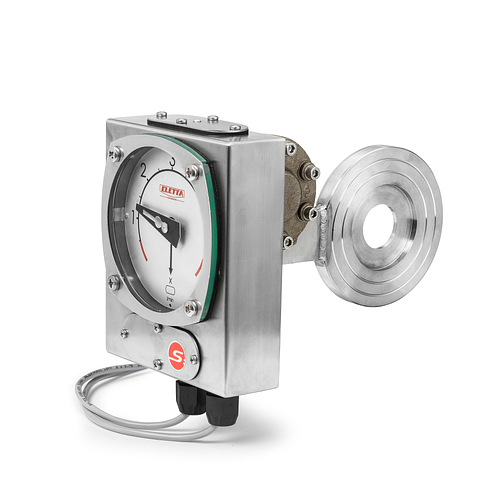

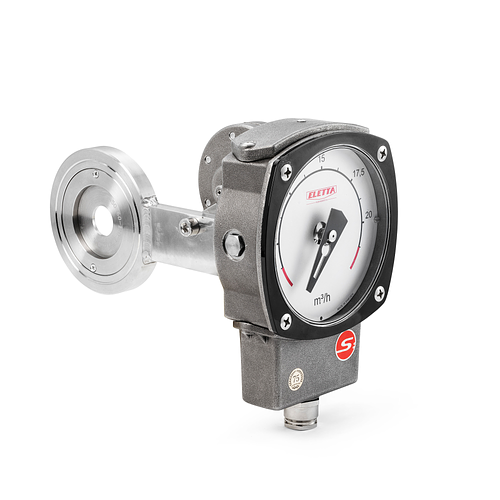

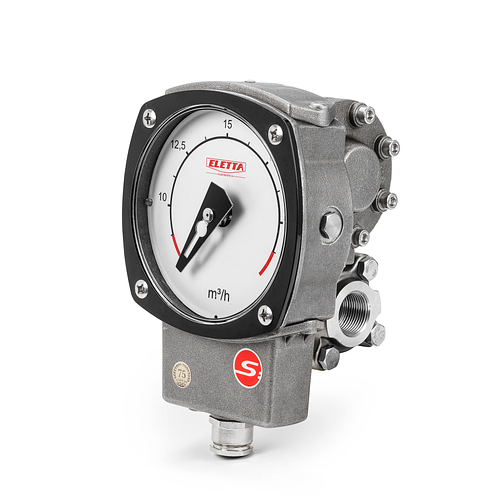

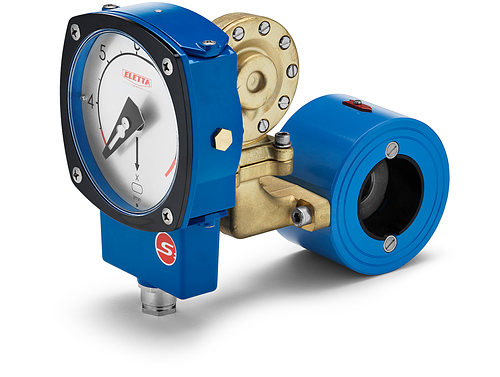

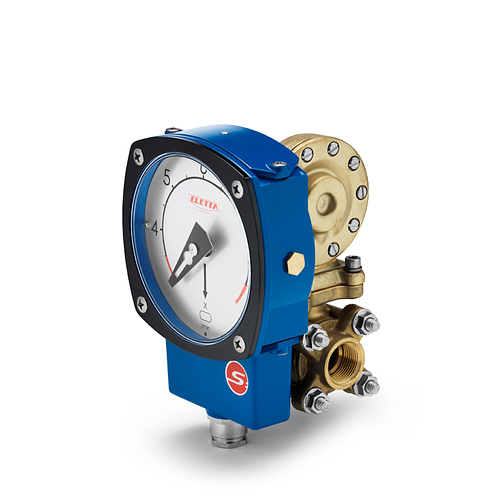

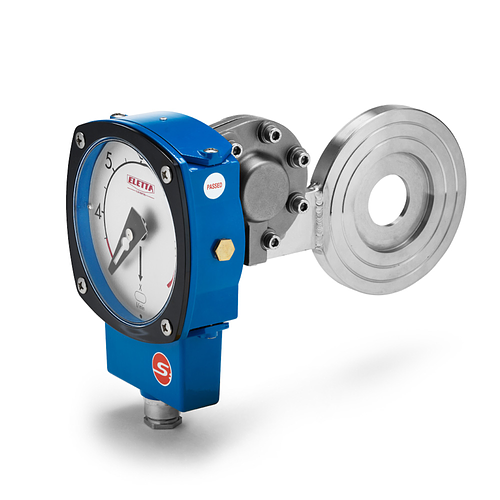

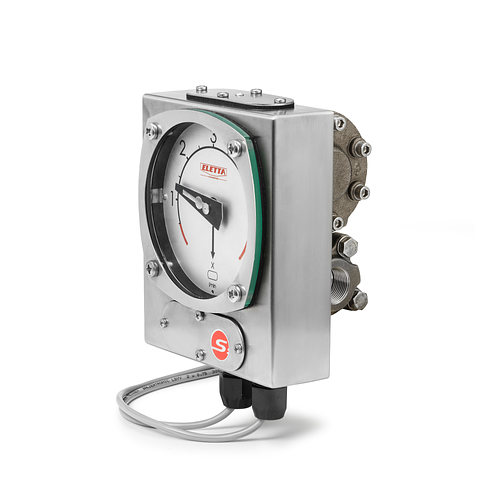

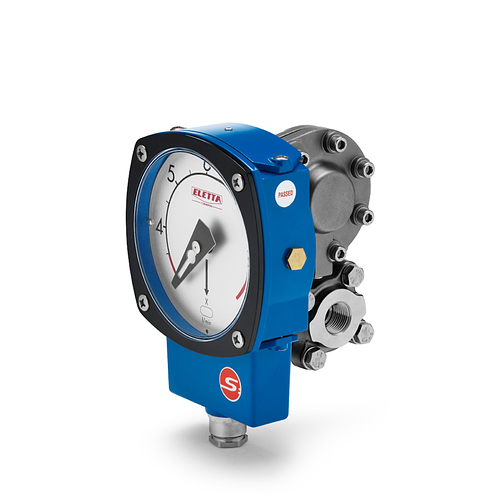

Flow Monitor in S-series - S2 & S25 has a large, easy-to-read, custom dial 120 mm, which is linear to the flow. The dial is clearly visible even in a tough and dusty industrial environment. It has two adjustable microswitches that are independent of each other. They are adjustable within the measurement range and they can be set for high/high or high/low or low/low flow alarms, for example to protect equipment in refrigeration or lubricating oil systems. Is insensitive to magnetic fields.

Pipe section:

brass, powder coated steel, stainless steel (other material on request)

Pipe sizes:

DN 15 - DN 550

Housing:

aluminum, stainless steel

Measuring range:

1:2 or 1:5

IP class:

IP43 as standard, IP65 as option

Temperature spec:

dependent on configuration. Contact Eletta

Options:

Atex certified, High temperature, separate mounting, parallell mounting with M – Series and more!

Switch rating:

max 15 A at 480 VAC & 2 A at 30 VDC

Micro switch:

two adjustable SPDT micro switches, repeatability <2% S02, S05 do not have microswitch but only show flow rate.
